How to use transparent videos on the web in 2022
Have you ever wondered why you don’t see videos with transparency on the web, let’s say, all the time?
Just imagine all the cool things you could do with it:
- Show a video on top of your HTML contents
- Show a video on top of another video
- Play a video that looks like it’s changing shape
- Show a video that just ever so slightly overlaps the body text on a page, breaking the boxy look
This post is a part of our series called The Big Guide to Transparent Backgrounds in videos and images
You may have even tried a Youtube embed or a Video tag and found that, nope, that didn’t work either. And how do you even make a transparent video - a video with an alpha channel - in the first place? And if you do find out, how do you double-check that it is, in fact, transparent? It’s not a friendly environment. It’s as if someone decided a long ago that we won’t need this. But we do.
And it’s technically possible. On top of that, the results look great and will set your project apart from those flat, boxy videos everyone else has.
Here’s what we’ll go through:
- What’s an example of alpha transparency on the web?
- Why isn’t transparency used more?
- The easy way
- The real way
- Converting your videos
- What to export
- Using Rotato Converter
- Using FFmpeg
- Installing FFmpeg
- Converting to WebM with FFmpeg
- Using the videos on the web
- Final thoughts
What’s an example of alpha transparency on the web?

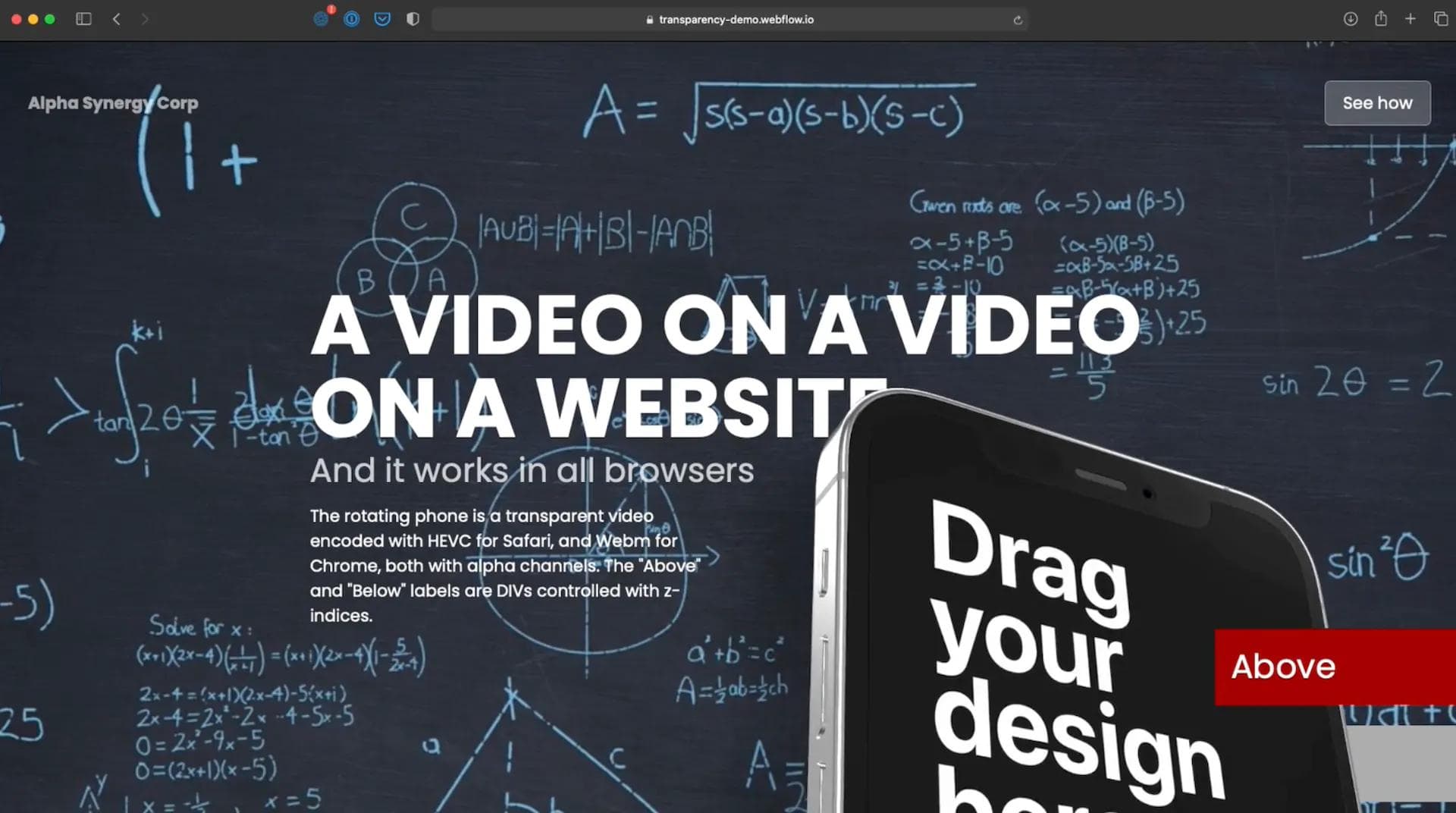

Glad you asked. Here’s an example we put together. See the live site here and the Webflow project here.

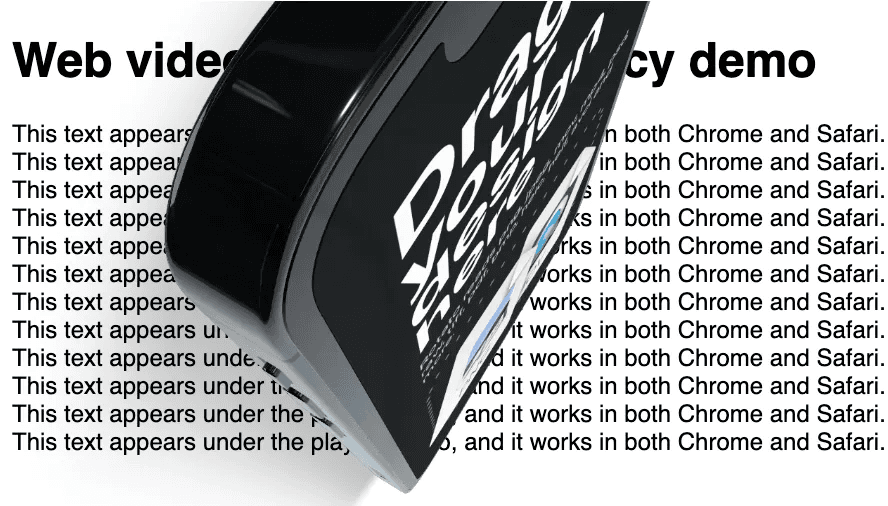

Here’s a more straightforward example (demo page) (codePen)
Why isn’t transparency used more?
Maybe because it’s just not supported — in an obvious way. In this post, I’ll show you how to do this and how to cheat and make a shortcut using smoke and mirrors.
Let’s get to it. But first, let’s agree on a few terms.

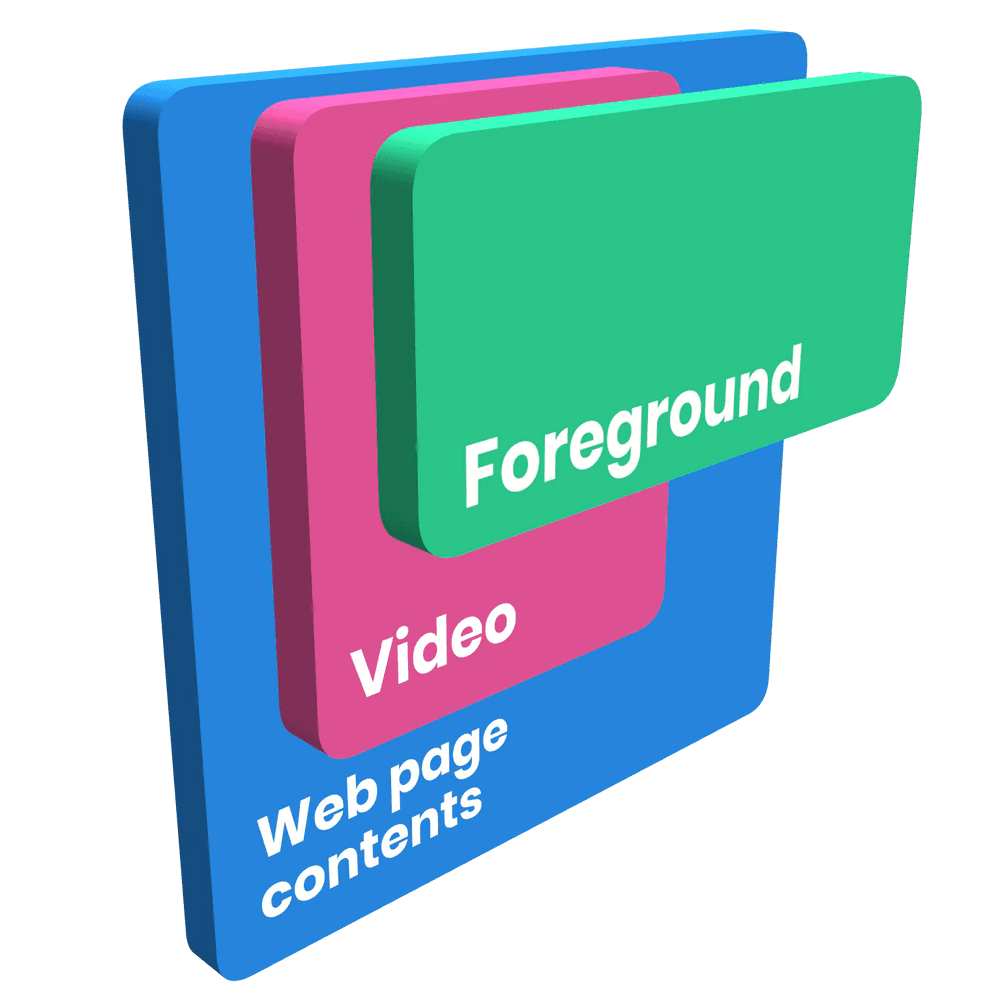

So, the blue box is your website, the red box is your transparent video, and the green box is your optional foreground, which might be a video.
Under your video, the big question that will determine our path as we advance is: what do you want to use as a background?
Your answer decides if we can go the easy way or the slightly more brutal way. Let’s start with the former.
The easy way
Here’s an example.

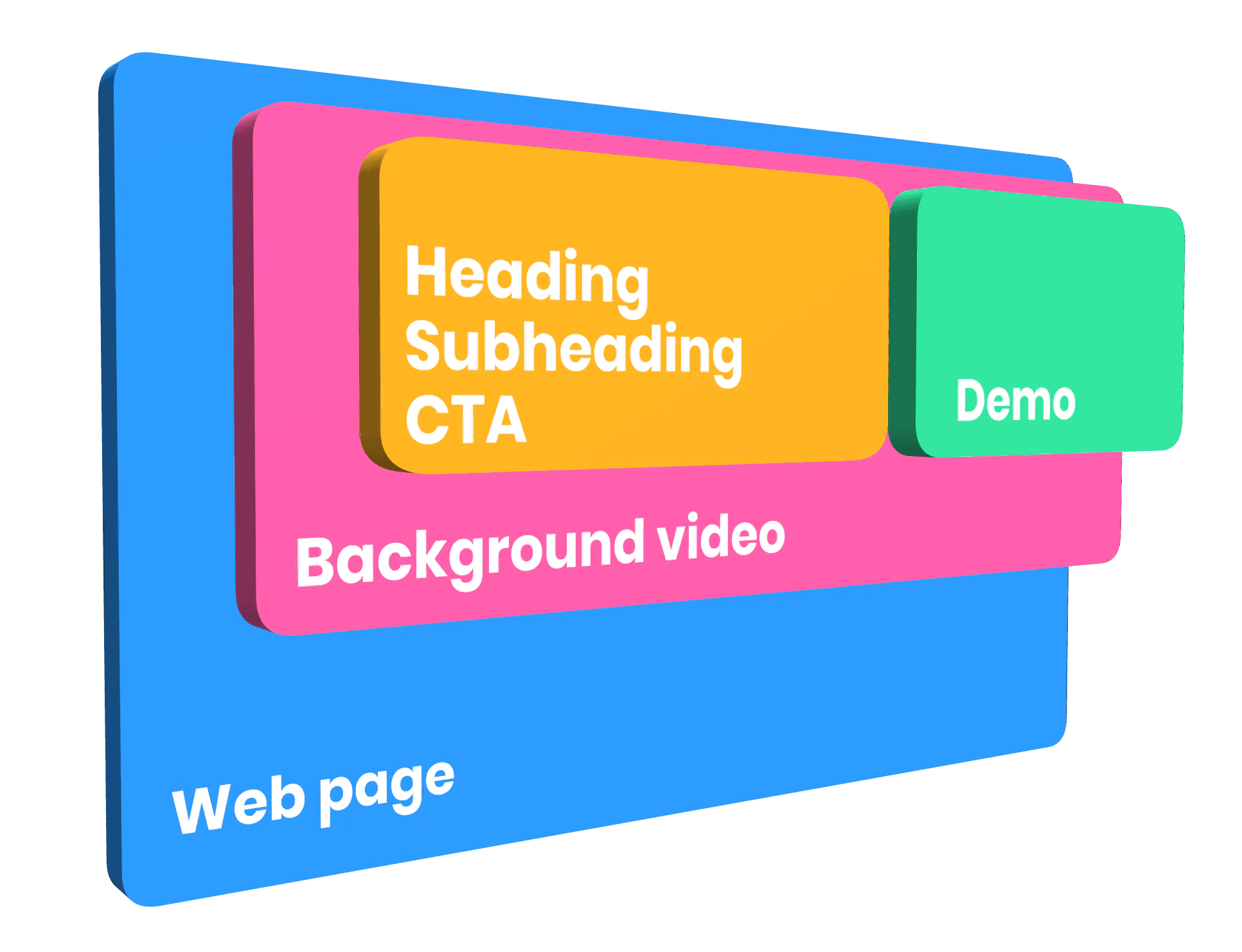

See how they have two videos going on here? On the top layer, there’s a video showing their product. The elements shrink and grow like it’s no big deal. And to top it off, they even have a video running below the video. Here’s what that would look like

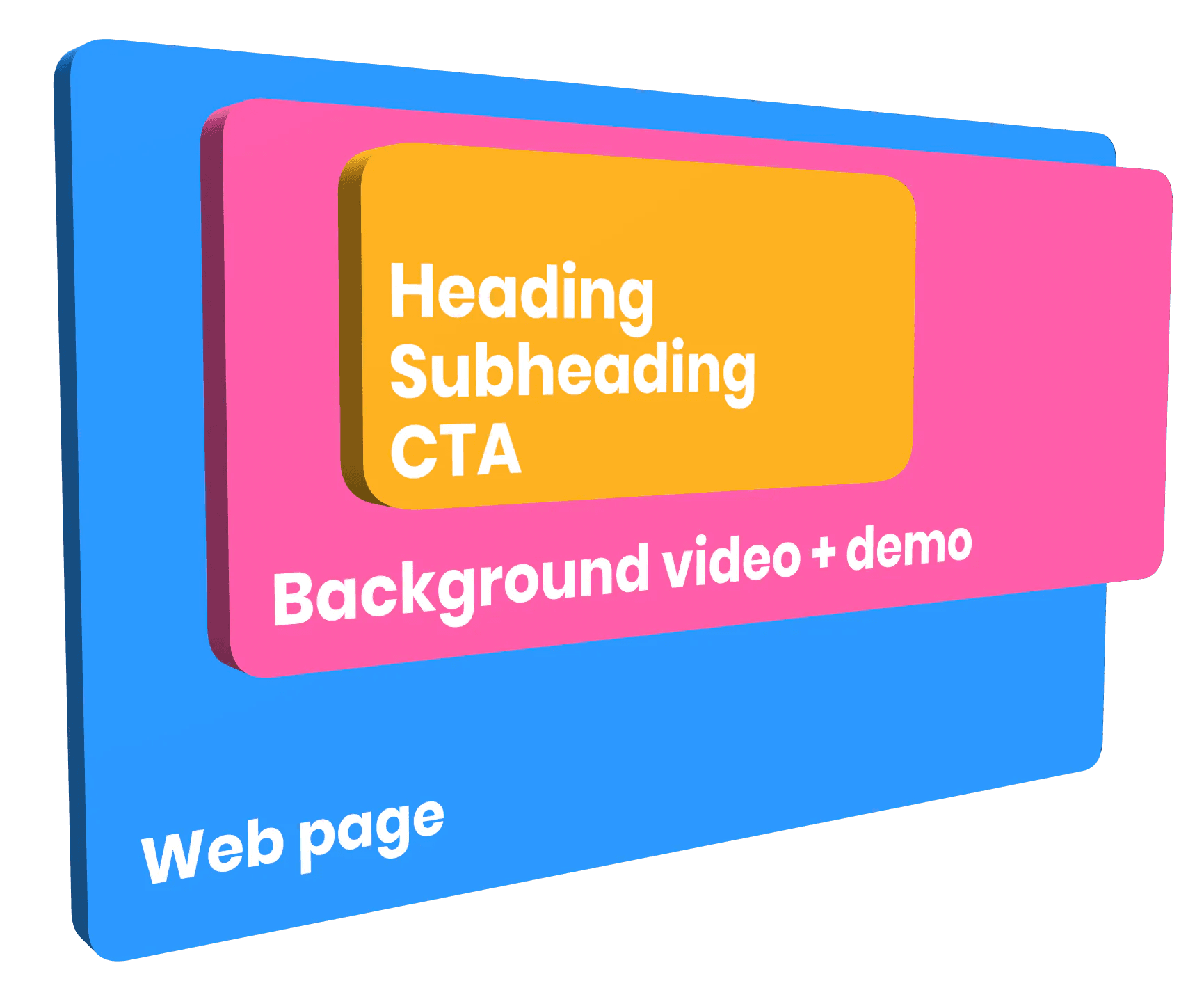

How did they do that? Well, they didn’t. Here’s what’s going on
What we see here is a clever workaround. The Typeform designers combined the UI video on top of the background video into one video. Then, they matched the background color with the color under the text and used the new, combined video as the background element. No transparency is needed.
Here’s the video they use:
So that’s one workaround - smoke and mirrors. It works because the background is abstract and nicely blends with the site’s background.
The big question is now: What if the background is not abstract? What if you want to play your video on top of rendered HTML, like in the first example? For that, we need a bigger knife.
The real way
This shouldn’t be a problem. We’ve had transparent video formats for years. So why isn’t this simple? Long legal story short: There are two significant browsers from two big companies. Google and Chrome think open source is fantastic, so they made their own open-source format. Apple and Safari want to stick to the MPEG standard, so they support HEVC (H265).
- Safari supports HEVC with alpha, and Chrome does not.
- Chrome supports VP9 with alpha, and Safari does not.
Now what? You guessed it: We’ll have to provide *both* formats and let each browser choose.
Converting your videos
The first thing you need is a video with an alpha channel. (If you’re using Rotato, here’s how to get one)
What to export
Before you do anything, make sure your video isn’t too big, as you’ll be playing it on the web directly. In Rotato, 720p is often big enough for a short video.
- First, export your HEVC with alpha, and call it movie-hevc.mov. This file will be our Safari-ready movie.
- If your video app supports VP9 with transparency, choose that. If it doesn’t support it directly, like Rotato, go for the HEVC With Alpha, then convert to WebM, as described below.
We now have 50% of the videos we need, so we’re halfway there! Next up, we’ll convert that HEVC video to VP9 so Chrome has something to play.
Using Rotato Converter
Here’s some good news for you: We built a small, free tool that converts to both alpha transparency formats in one go! It’s simple enough to download and use, but you can also check out our guide to using Rotato Converter.
If you want to geek out, you can install FFmpeg and do the conversions yourself. Here’s how to do that:
First, we’ll need an app that can convert between video formats. FFmpeg is free and fast. Install the latest version of FFmpeg here. If you’re not sure how to put FFmpeg in your path, see this video tutorial for an end-to-end tutorial.
It’s a command-line tool, so you’ll need to open Terminal on your Mac. Once there, cd into the folder with the source video.
Converting to WebM with FFmpeg
In Terminal, enter the following command in the folder with your exported videos.
ffmpeg -i "movie-prores.mov" -c:v libvpx-vp9 movie-webm.webm
If you have an Intel Mac, you will now hear your cooling fans getting to work. It will take a few minutes, depending on how big your video is. There is a lot of math going on here, so grab a coffee and wait. It can easily take 10-15 minutes.
Using the videos on the web
You should now have the two video files you need. It’s time to put them online!
Upload the movies to your web server, and use this code snippet wherever you need your video.
<video width="600" height="100%" autoplay loop muted playsinline> <source src="https://rotato.netlify.app/alpha-demo/movie-hevc.mov" type='video/mp4; codecs="hvc1"'> <source src="https://rotato.netlify.app/alpha-demo/movie-webm.webm" type="video/webm"> </video>
That was a lot! But when you look at it from above, it’s a simple process:
- Create your video with transparency in a video editing program like Premiere, Final Cut or Rotato
- Convert that video to HEVC With Alpha and WebM
- Upload those videos to a web server
- Embed the videos on your website using the
videotag with two
Now that you know how to remove the boxy look of videos and even show the content below, ample creative space opens up. So get out there and blow everyone’s minds with your alpha channels.
We’d love to hear if this guide was helpful or if you have any comments. We’re constantly improving our guides. So let us know about our guides at rotato. app. We made the 3D illustrations with the excellent Spline tool, and the example comes from Typeform.
